Is digging a pit necessary for installing a luxury swim spa tub?

Among home wellness and leisure facilities, luxury swim spa tubs, combining swimming, massage, and hydrotherapy, have become a popular choice for villas, courtyards, and even indoor wellness spaces.

However, during the installation process, many owners, designers, and contractors face a key question: is digging a pit necessary for a luxury swim spa tub?

This seemingly simple question actually involves multiple dimensions:

1. Equipment structure and installation method

2. Foundation load-bearing capacity and drainage system

3. Maintenance ease and aesthetics

4. Usable space and ventilation requirements

To answer this question scientifically, a deep understanding of the structural features and installation logic of a luxury swim spa tub is essential.

What is the structural principle of a luxury swim spa tub?

A luxury swim spa tub integrates a constant temperature heating system, a circulating filtration system, powerful water jets, and hydromassage functions.

Structurally, it consists of the following components:

    • Main tub shell: Made of acrylic or fiberglass reinforced material, it offers high strength and corrosion resistance.

    • Support frame: Mostly made of stainless steel or aluminum alloy, it bears the overall weight and provides structural stability.

    • Circulation and filtration system: Maintains water purity and automatically filters impurities.

    • Water jet system: Creates countercurrent and supports stationary swimming training.

    • Heating and thermostat system: Maintains a comfortable water temperature.

    • Control system: Provides water flow regulation, massage functions, and lighting control.

These systems are all integrated into the tub body. Most luxury swim spa tubs are "integrated devices," meaning they can be placed directly on the ground and do not require burying in the ground.

Is digging a pit necessary for installing a luxury swim spa tub?

The answer is: not necessarily.

Whether digging a pit is necessary depends on your specific requirements for installation, space design, and user experience.

Currently, there are two main installation methods for luxury swim spa tubs:

Each method has its advantages and disadvantages, which we will analyze in detail from various perspectives.

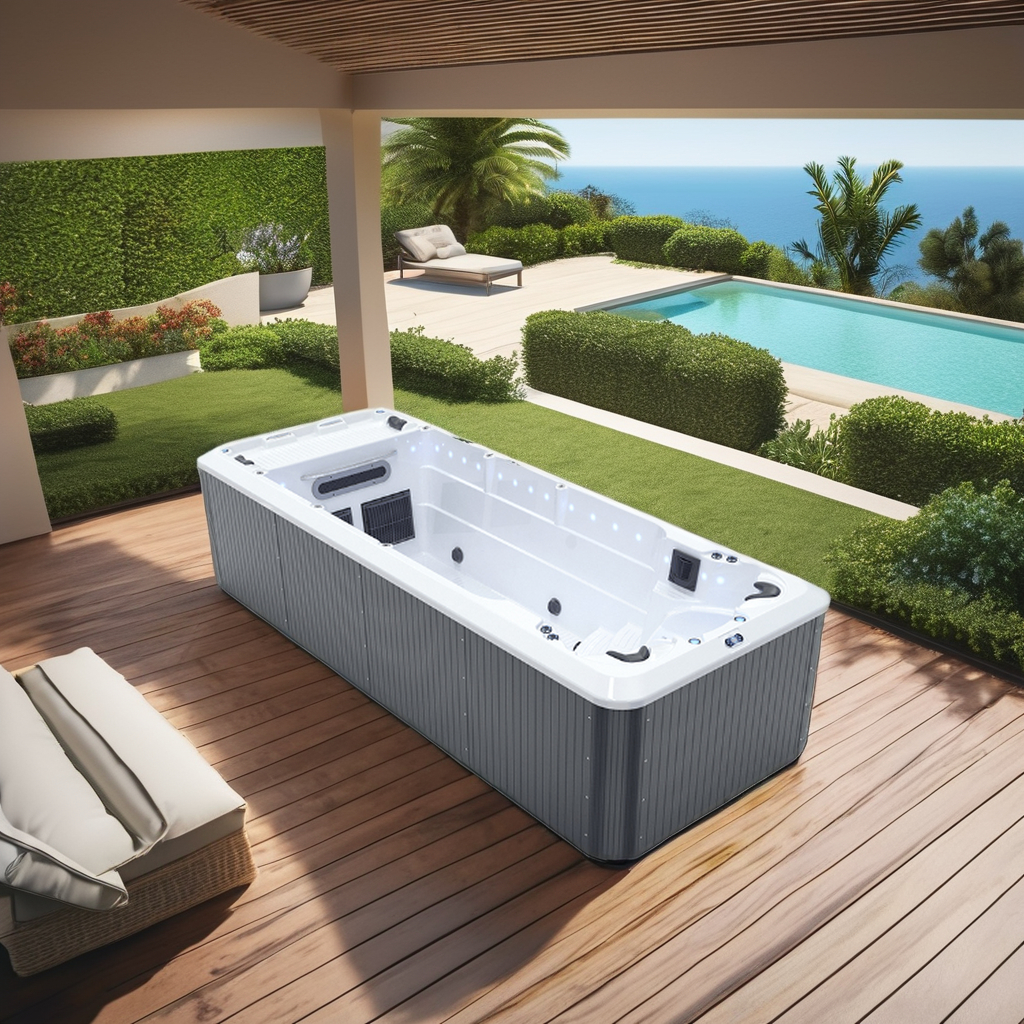

What are the advantages of installing a luxury swim spa tub without digging a pit?

For most homes, above-ground installation is the most common, safest, and most efficient method. Its main advantages are as follows:

1. Easier Construction

No civil excavation or waterproofing modifications are required. As long as the ground is flat and meets the load-bearing requirements (generally 500-800 kg/m²), installation is straightforward.

2. Lower Costs

No pit excavation means significant savings in civil engineering costs, labor costs, waterproofing materials, and ongoing maintenance.

3. Short Installation Time

A standard luxury swim spa tub can be operational in just 1-3 days, from site arrival to commissioning.

4. Easier Maintenance

All equipment (such as filters, heaters, and pumps) is easily accessible externally for easy inspection and cleaning.

5. High Flexibility

If relocated or relocated in the future, an above-ground luxury swim spa tub can be relocated entirely without the constraints of the underlying infrastructure.

6. Enhanced Safety

The above-ground structure makes it easy for children and the elderly to enter and exit, reducing the risk of falls. Therefore, if you have sufficient space and don't require high concealment, a pit-free installation is the most practical option.

When is a pit required for luxury swim spa tub installation?

While most users choose above-ground installation, there are specific situations where a pit-based (recessed) installation is more ideal. In the following situations, a pit is the recommended solution:

1. Pursuing overall aesthetics and spatial integration

When a luxury swim spa tub is installed in a courtyard, terrace, or wellness room, designers often want it to be flush with the ground to create an overall visual unity.

In these cases, the tub can be partially or fully recessed into the ground to create an "infinity pool" effect.

2. Limited space

If the space is low, such as in a semi-basement or terrace, a pit-based installation can reduce the exposed height of the equipment and avoid obstructing views.

3. Concealing equipment and piping

A recessed installation allows piping, pumps, and filter boxes to be concealed below ground or in an equipment room, creating a cleaner appearance.

4. Design Requirements for High-End Residences or Clubhouses

Some high-end wellness spaces often adopt a "semi-recessed" design to achieve visual integration, which often requires partial excavation.

5. Outdoor Windproofing and Insulation Requirements

The space below ground provides natural insulation, reducing heat loss and saving energy.

In summary, pit installation is more of a design choice that combines aesthetics and functionality, rather than a technical necessity.

What should you consider if you choose to install a luxury swim spa tub using a pit?

Although pit installation is aesthetically pleasing, it places higher demands on construction. The following key points must be considered:

1. Foundation Load-Bearing Capacity and Structural Stability

The pit bottom should be laid with a concrete cushion, generally 15-20 cm thick, capable of bearing the weight of the equipment, the water, and the users.

2. Waterproofing and Drainage System

The pit walls must be waterproofed, and drainage pipes must be installed to prevent leakage or water accumulation.

An overflow outlet and bottom drain outlet should be provided to facilitate regular water changes.

3. Equipment Maintenance Access

Prior to installation, accessible maintenance hatches or side access should be designed to ensure access to and replacement of accessories for maintenance.

4. Electrical and Ventilation Systems

Luxury swim spa tubs require electrical power to operate the pump and heater. If located underground or in an enclosed space, moisture and electrical leakage protection and air circulation must be ensured.

5. Pit Size

The pit should be 20-30 cm larger than the actual tub size to facilitate lifting and filling the equipment.

Also, allow for maintenance clearance around the perimeter.

6. Avoid Completely Enclosed Structures

If the pit completely surrounds the equipment, moisture accumulation and temperature corrosion will occur, shortening its lifespan. Ventilation and dehumidification space should be maintained.

For this reason, pit installation for luxury swim spa tubs must be performed under the guidance of a professional. Otherwise, problems such as poor drainage and difficulty maintaining the equipment may occur.

Which is more suitable for home use: above-ground or pit installation?

From a home perspective, we can comprehensively compare the two installation methods:

Conclusion:

    • For home use → Above-ground installation is recommended;

    • For high-end villa or clubhouse designs → Consider pit or semi-recessed installation.

What preparations are needed before installing a luxury swim spa tub?

Whether or not you dig a pit, the following preparations must be completed before installation:

    • Measure the space dimensions: Ensure the equipment can be brought in and placed smoothly.

    • Check the floor's load-bearing capacity: The total weight when fully filled with water is typically between 3 and 8 tons.

    • Reserve a power outlet: It is recommended to use an independent circuit and install a leakage protection device.

    • Plan a drainage location: Facilitate water changes and cleaning.

    • Consider anti-slip measures and access paths: Ensure personal safety.

These basic preparations will ensure a smooth and safe luxury swim spa tub installation.

From a long-term maintenance perspective, is pit installation more complex?

Yes, pit installations are more complex to maintain than above-ground installations.

The main issues are as follows:

    • Difficulty in maintenance: Some pipelines are located underground, making them difficult to remove.

    • Moisture accumulation: Chronic moisture in the pit can easily lead to metal corrosion.

    • Limited drainage: An improper drainage slope can easily lead to water accumulation.

    • Difficulty isolating pump noise: Improper sealing of the equipment compartment can affect the surrounding environment.

Therefore, if users lack access to professional maintenance, it is recommended to choose an above-ground luxury swim spa tub installation, which is easier to manage and maintain.

Whether or not to dig a pit for a luxury swim spa tub depends on the intended use

The above analysis leads to the following conclusions:

✅ No-dig installation (above-ground installation) - Recommended for most homes and private residences

    • Lower cost

    • Easier maintenance

    • Flexible and removable

    • Short installation period

✅ Recessed installation (recessed installation) - Suitable for high-end venues or aesthetically pleasing spaces

    • Visual integration

    • More concealed

    • Excellent thermal insulation

    • Longer construction period and complex maintenance

Therefore, there's no fixed answer to whether or not to dig a pit for a luxury swim spa tub. The key is:

Choose the installation method that best suits your needs, considering site conditions, aesthetic requirements, budget, and ease of maintenance.
